Siata Activated Carbon Filter

Ref Number:	Item Code	Description	Price
		Time Clock	POA
SAC1	SIF132F10AC	V132F Activated Carbon Filter, 10" x 54" tank, 0.5m³/hr	POA
SAC2	SIF132F13AC	V132F Activated Carbon Filter, 13" x 54" tank, 0.75m³/hr	POA
SAC3	SIF132F14AC	V132F Activated Carbon Filter, 14" x 65" tank, 1.0m³/h	POA
SAC4	SIF132F16AC	V132F Activated Carbon Filter, 16" x 65" tank, 1.5m³/hr	POA
SAC5	SIF230F18AC	V230F Activated Carbon Filter, 18" x 65" tank, 1.9m³/hr	POA
SAC6	SIF250F21AC	V250F Activated Carbon Filter, 21" x 60" tank, 2.25m³/hr	POA
SAC7	SIF250F24AC	V250F Activated Carbon Filter, 24" x 69" tank, 3.25m³/hr	POA
SAC8	SIF250F30AC	V250F Activated Carbon Filter, 30" x 72" tank, 5.0m³/hr	POA
SAC9	SIF250F36AC	V250F Activated Carbon Filter, 36" x 78" tank, 7.5m³/hr	POA
SAC10	SIF363F42AC	V363F Activated Carbon Filter, 42" x 78" tank, 10m³/hr (No manifold)	POA
		Options	POA
SAC11	6108998591	V363F 2" PVC Manifold 42" Flanged Vessels	POA
SAC12	V132 NBP Assy	1" Aquamatic Valve, Complete with Limit Stop and Fitting Kit	POA
SAC13	V230/V250 NBP Assy	1½" Aquamatic Valve, Complete with Limit Stop and Fitting Kit	POA
		Replacement Filter Media	POA
SAC14	0905079516	Coconut Shell GAC 25Kg ( 50 Litres )	POA
SAC15	0901016153	Support Gravel 3-5mm 25Kg ( 16 Litres )	POA

General
Dimensions
Regeneration
Specification

General

General conditions for installation
Connection Inlet & Outlet V132F : 1”
V230F : 1¼” Union
V250F : 1½” Union
V363F : 2” Union
Electrical Rating : 230-12V / 50 Hz
Power Rating : 4.6VA
Minimum Inlet Pressure : 200 kPa ( 2 Bar )
Maximum Inlet Pressure : 700 kPa ( 7 Bar )
Vacuum : Not permitted
Average Pressure Loss : 100 kPa ( 1 Bar )
Maximum Water Temperature : 43ºc

Media Type : Coconut Shell Carbon
: 3 - 5mm Support Gravel
Life Span : Dependent on frequency of backwashing and site conditions

Dimensions

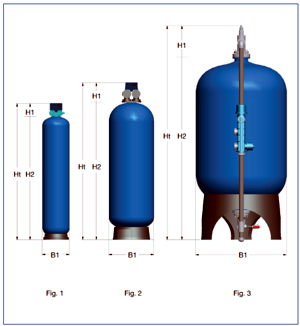

Model Reference	Valve H1	Vessel H2	Vessel B1	Filter Ht	Inlet/Outlet	Drawing No
SIF132F10AC	195	1387	257	1582	1"	Fig. 1
SIF132F13AC	195	1374	334	1569	1"	Fig. 1
SIF132F14AC	195	1660	369	1855	1"	Fig. 1
SIF132F16AC	195	1660	406	1855	1"	Fig. 1
SIF230F18AC	195	1750	469	1945	11/4"	Fig. 1
SIF250F21AC	370	1640	552	2010	11/2	Fig. 2
SIF250F24AC	370	1890	610	2260	11/2	Fig. 2
SIF250F30AC	370	2300	770	2670	11/2	Fig. 2
SIF250F36AC	370	2350	927	2550	11/2	Fig. 2
SIF363F42AC	N/A	2435	1074	2635	2" SM*	Fig. 3

Regeneration

Start: Programmable regeneration time + day interval
Manual: Manual operation as required

Operating Conditions
For organic and colour removal 6 mins contact time
For dechlorination 3 mins contact time. (Flow rates may be doubled)

Specification

Specification

Vessel Diameter	10"	13"	14"	16"	18"
Service flow rate m3/hr	0.5	0.75	1.0	1.5	1.9
Backwash flow rate m3/hr	0.75	1.1	1.5	2.3	3
Vessel Diameter	21"	24"	30"	36"	42"
Service flow rate m3/hr	2.25	3.25	5.0	7.5	10.0
Backwash flow rate m3/hr	3.0	4.75	7.5	11.0	15.0
