Siata Filox Filter

Ref Number:	Item Code	Description	Price
		Time Clock	POA
SF1	SIF132STE10FR	V132F Filox R Iron Removal Filter, 10" x 54" tank, 0.9m³/hr	POA
SF2	SIF132STE13FR	V132F Filox R Iron Removal Filter, 13" x 54" tank, 1.8m³/hr	POA
SF3	SIF230STE14FR	V230F Filox R Iron Removal Filter, 14" x 65" tank, 2.2m³/h	POA
SF4	SIF250STE16FR	V250F Filox R Iron Removal Filter, 16" x 65" tank, 3.6m³/hr	POA
SF5	SIF250STE18FR	V250F Filox R Iron Removal Filter, 18" x 65" tank, 4.5m³/hr	POA
SF6	SIF250STE21FR	V250F Filox R Iron Removal Filter, 21" x 66" tank, 5.4m³/hr	POA
SF7	SIF351STE24FR	V351F Filox R Iron Removal Filter, 24" x 75" tank, 7.2m³/hr	POA
SF8	SIF351STE30FR	V351F Filox R Iron Removal Filter, 30" x 78" tank, 10m³/hr	POA
SF9	SIF363STE36FR	V363F Filox R Iron Removal Filter, 36" x 78" tank, 14.5m³/hr (No manifold)	POA
		Options	POA
SF10	6108998591	V363F 2" PVC Manifold 42" Flanged Vessels	POA
SF11	V132 NBP Assy	1" Aquamatic Valve, Complete with Limit Stop and Fitting Kit	POA
SF12	V230/V250 NBP Assy	1½" Aquamatic Valve, Complete with Limit Stop and Fitting Kit	POA
		Replacement Filter Media	POA
SF13	0906009403	Iron/Manganese Removal Media 0.5cu.ft ( 14.6 litres )	POA

General
Dimensions
Regeneration
Specification

General

General conditions for installation
Connection Inlet & Outlet V132F : 1”
V230F : 1¼” Union
V250/V351 : 1½” Union
V363 : 2” Union
Electrical Rating : 230-12V / 50 Hz
Power Rating : 4.6VA
Minimum Inlet Pressure : 200 kPa ( 2 Bar )
Maximum Inlet Pressure : 700 kPa ( 7 Bar )
Vacuum : Not permitted
Average Pressure Loss : 100 kPa ( 1 Bar )
Maximum Water Temperature : 43ºc
Operating pH Range : 5.0 - 9.0
Screen Size : 12 x 40
Removal Capacity @ Exhaustion Iron : 27 ppm
Manganese : 11 ppm
Hydrogen Sulphide: 17 ppm

Media Type : Filox R ( 75% - 85% Manganese Dioxide )
Life Span : Dependent on frequency of backwashing and site conditions

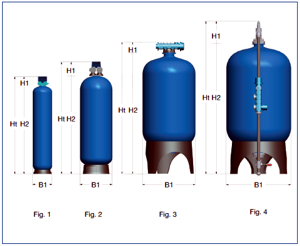

Dimensions

Model Reference	Valve H1	Vessel H2	Vessel B1	Filter Ht	Inlet/ Outlet	Drawing No
SIF132STE10FR	195	1387	257	1582	1"	Fig. 1
SIF132STE13FR	195	1374	334	1569	1"	Fig. 1
SIF230STE14FR	195	1660	369	1855	11/4"	Fig. 1
SIF250STE16FR	370	1660	406	2030	11/2"	Fig. 2
SIF250STE18FR	370	1750	469	2120	11/2"	Fig. 2
SIF250STE21FR	370	1640	552	2010	11/2"	Fig. 2
SIF351STE24FR	260	1890	610	2150	11/2"	Fig. 3
SIF351STE30FR	260	2300	770	2560	11/2"	Fig. 3
SIF363STE36FR	N/A	2350	927	2550	2" SM*	Fig. 4

Regeneration

Start: Programmable regeneration time + day interval
Manual: Manual operation as required

Operating Conditions
For organic and colour removal 6 mins contact time
For dechlorination 3 mins contact time. (Flow rates may be doubled)

Specification

Specification

Vessel Diameter	10"	13"	14"	16"	18"
Media Volume Cu ft	1	2	0.5	4
Service flow rate m3ihr	0.9	1.8	2.2	3.6	4.5
Backwash flow rate rn3Ihr	1.8	3.1	3.5	4.7	5.9
Vessel Diameter	21"	24"	30"	36"
Media Volume cu ft	6	8	11	16
Service flow rate nisihr	5.4	7.2	10.0	14.5
Backwash flow rate m3/hr	8.8	11.8	16	24
