Siata Simplex V132

Ref No.	Item Code	Description	Price
		V132A/STE Standard Electronic Time Clock	POA
V13201	SIS132STE15	15 Litre, Time Clock, 8" x 35" tank, BT 130, 0.6m³/hr	POA
V13202	SIS132STE30	30 Litre, Time Clock, 10" x 35" tank, BT 200, 1.2m³/hr	POA
V13203	SIS132STE50	50 Litre, Time Clock, 10" x 54" tank, BT 200, 2.0m³/hr	POA
V13204	SIS132STE60	60 Litre, Time Clock, 12" x 48" tank, BT 200, 2.4m³/hr	POA
V13205	SIS132STE75	75 Litre, Time Clock, 13" x 54" tank, BT 200, 3.0m³/hr	POA
V13206	SIS132STE100	100 Litre, Time Clock, 14" x 65" tank, BT 300, 4.0m³/hr	POA
V13207	SIS132STE125	125 Litre, Time Clock, 16" x 65" tank, BT 300, 4.5m³/hr	POA
V13208	SIS132STE175	175 Litre, Time Clock, 18" x 65" tank, BT 300, 4.5m³/hr	POA
		V132T/ATO Meter Controlled	POA
V13209	SIS132AT15	15 Litre, Metered Controlled, 8" x 35" tank, BT 130, 0.6m³/hr	POA
V13210	SIS132AT30	30 Litre, Metered Controlled, 10" x 35" tank, BT 200, 1.2m³/hr	POA
V13211	SIS132AT50	50 Litre, Metered Controlled, 10" x 54" tank, BT 200, 2.0m³/hr	POA
V13212	SIS132AT60	60 Litre, Metered Controlled, 12" x 48" tank, BT 200, 2.4m³/hr	POA
V13213	SIS132AT75	75 Litre, Metered Controlled, 13" x 54" tank, BT 200, 3.0m³/hr	POA
V13214	SIS132AT100	100 Litre, Metered Controlled, 14" x 65" tank, BT 300, 4.0m³/hr	POA
V13215	SIS132AT125	125 Litre, Metered Controlled, 16" x 65" tank, BT 300, 4.5m³/hr	POA
V13216	SIS132AT175	175 Litre, Metered Controlled, 18" x 65" tank, BT 300, 4.5m³/hr	POA

General
Dimensions
Regeneration
Ion Exchange

General

General conditions for installation
Connection Inlet & Outlet : 1” BSP
Drain Connection * : ¾” Hose barb
Electrical Rating : 230-12V / 50 Hz
Power Rating : 4.6 VA
Minimum Inlet Pressure : 200 kPa ( 2 Bar )
Maximum Inlet Pressure : 600 kPa ( 7 Bar )
Vacuum : Not permitted
Average Pressure Loss ** : 100 kPa ( 1 Bar )
Maximum Water Temperature : 43ºc

* Open drain required. It is recommended that a 20pm Pre-cartridge filter be installed prior to the inlet of the water softener

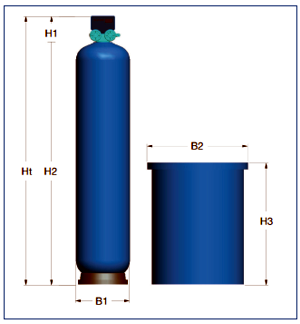

Dimensions in mm

Resin Litres	Valve H1	Vessel H2	Vessel B1	Brine Tank H3	Brine Tank B2	Softener Ht	Inlet/Outlet
15	195	904	208	780	590	1099	1"
30	195	905	257	830	670	1100	1"
50	195	1387	257	830	670	1582	1"
60	195	1235	304	830	670	1430	1"
75	195	1374	334	830	670	1569	1"
100	195	1660	369	1000	760	1855	1"
125	195	1660	406	1000	760	1855	1"
175	195	1750	469	1000	760	1945	1"

Regeneration

Litres of Resin		15	30	50	60	75	100	125	175
1) Backwash	Litres	21	48	94	128	128	195	195	226
2) Brining + Slow Rinse	Litres	40	83	131	158	197	252	285	471
3) Fast Rinse	Litres	37	64	94	128	128	195	243	283
	Total	98	195	319	414	453	642	723	980

Ion Exchange

Resin Type: Strong acid cation resin - softening, food grade quality Life Span: 15 years under normal operating conditions
Ion exchange
Litres of Resin		15	30	50	60	75	100	125	175
Softener Capacity as CaCO3	200ppm	3.7m3	7.5m3	12.5m3	15m3	18.7m3	25m3	31.2m3	43.7m3
	250ppm	3m3	6m3	10m3	12m3	15m3	20m3	25m3	35m3
	300ppm	2.5m3	5m3	8.3m3	10m3	12.5m3	16.6m3	20.8m3	29.1m3
Salt Consumption	kg/reg.	1.8	3.6	6.0	7.2	9.0	12	15	21

Flow rate
Litres of Resin		15	30	50	60	75	100	125	175
	nominal m3/hr	0.6	1.2	2.0	2.4	3.0	4.0	4.5	4.5
