Siata Simplex V360

Ref No.	Item Code	Description	Price
		V360A/STE Standard Electronic Time Clock, NBP (No manifold included)	POA
V36001	SIS360STE500	500 Litre, Time Clock, 30" x 72" tank, BT 1000, 20m³/hr	POA
V36002	SIS360STE750	750 Litre, Time Clock, 36" x 72" tank, BT 1000, 20m³/hr	POA
V36003	SIS360STE750HF	750 Litre, Time Clock, 36" x 78" tank, BT 1000, 30m³/hr	POA
V36004	SIS360STE850HF	850 Litre, Time Clock, 42" x 78" tank, BT 1750, 34m³/hr	POA
V36005	SIS360STE1000HF	1000 Litre, Time Clock, 42" x 78" tank, BT 1750, 40m³/hr	POA
V36006	SIS360STE1250HF	1250 Litre, Time Clock, 48" x 82" tank, BT 1750, 40m³/hr	POA
		V360A/ATO Meter Controlled, NBP (No manifold included)	POA
V36007	SIS360AT500	500 Litre, Metered Controlled, 30" x 72" tank, BT 1000, 20m³/hr	POA
V36008	SIS360AT750	750 Litre, Metered Controlled, 36" x 72" tank, BT 1000, 20m³/hr	POA
V36009	SIS360AT750HF	750 Litre, Metered Controlled, 36" x 78" tank, BT 1000, 30m³/hr	POA
V36010	SIS360AT850HF	850 Litre, Metered Controlled, 42" x 78" tank, BT 1750, 34m³/hr	POA
V36011	SIS360AT1000HF	1000 Litre, Metered Controlled, 42" x 78" tank, BT 1750, 40m³/hr	POA
V36012	SIS360AT1250HF	1250 Litre, Metered Controlled, 48" x 82" tank, BT 1750, 40m³/hr	POA
		Options	POA
V36013	2" MANIFOLD	2" PVC Frontal Manifold Assembly c/w Isolation Valves to suit 500 - 750 Litre	POA
		Softeners	POA
V36014	2½" MANIFOLD	2½" PVC Frontal Manifold Assembly c/w Isolation Valves to suit 750 Litre High-flow	POA
		Softeners	POA
V36015	3" MANIFOLD	3" PVC Frontal Manifold Assembly c/w Isolation Valves to suit 850 - 1250 Litre	POA

General
Dimensions
Regeneration
Ion Exchange

General

General conditions for installation
Connection Inlet & Outlet : 2” (500 - 700 Litre)
: 2½” (750 Litre High Flow)
: 3” (850 - 1250 Litre)
Drain Connection * : 1”
Electrical Rating : 230-12V / 50 Hz
Power Rating : 4.6 VA
Minimum Inlet Pressure : 200 kPa ( 2 Bar )
Maximum Inlet Pressure : 600 kPa ( 7 Bar )
Vacuum : Not permitted
Average Pressure Loss ** : 100 kPa ( 1 Bar )
Maximum Water Temperature : 43ºc

* Open drain required. It is recommended that a 20pm Pre-cartridge filter be installed prior to the inlet of the water softener

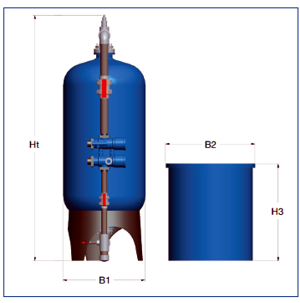

Dimensions in mm

Resin Litres	Softener Htr	Vessel B1	Brine Tank H3	Brine Tank B2	Inlet/Outlet
500	2250	770	1290	1070	2"
750	2350	927	1290	1070	2"
7501-IF	2350	927	1290	1070	21/2"
850 HF	2635	1074	1500	1260	3"
1000 HF	2635	1074	1500	1260	3"
1250 HF	2635	1226	1500	1260	3"

Regeneration

Litres of Resin		500	750	850	1000	1250
1) Backwash	Litres	950	1520	1520	1520	2014
2) Brining + Slow Rinse	Litres	940	1046	1308	1620	2030
3) Fast Rinse	Litres	1330	1976	2280	2432	3625
	Total	3220	4542	5108	5572	7669

Ion Exchange

Resin Type: Strong acid cation resin - softening, food grade quality Life Span: 15 years under normal operating conditions
Ion exchange
Litres of Resin		500	750	850		1000	1250
Softener Capacity as CaCO3	200ppm	125m3	187.5m3	212.5m3		250m3	312.5m3
	250ppm	100m3	150m3	170m3		200m3	250m3
	300ppm	83.3m3	125m3	141.6m3		166m3	208.3m3
Salt Consumption	kg/reg.	60	90	102		120	150

Flow rate
Litres of Resin		500	750	750HF	850	1000	1250
	nominal m3/hr	20	20	30	34	40	40
